Heating Systems
InstaGroup has many years experience in the installation, service, and maintenance of heating and hot water systems.
Underfloor Heating
Acoustic flooring with underfloor heating (UFH) is increasingly specified for new builds and redevelopment projects. The combined system offers higher efficiencies compared with radiators, and frees up space that is at a premium in living spaces and apartments.
As more and more buildings convert to renewable heating sources such as air source heat pumps, the water feed temperature becomes lower. This change in heating systems makes underfloor heating the best option.
An integrated solution - We can design acoustic flooring with underfloor heating to suit individual design and programme requirements. Ask about UFH systems to suit your project.
Our team work closely with Mechanical & Electrical contractors at all interfaces to deliver a smooth installation with optimum results.
We fully commission the UFH system by connecting it, flushing it completely and dosing it with Biocides and Inhibitors for long lasting protection that maintains effective operation.
As more and more buildings convert to renewable heating sources such as air source heat pumps, the water feed temperature becomes lower. This change in heating systems makes underfloor heating the best option.
An integrated solution - We can design acoustic flooring with underfloor heating to suit individual design and programme requirements. Ask about UFH systems to suit your project.
Our team work closely with Mechanical & Electrical contractors at all interfaces to deliver a smooth installation with optimum results.
We fully commission the UFH system by connecting it, flushing it completely and dosing it with Biocides and Inhibitors for long lasting protection that maintains effective operation.
EdB System
When installing UFH it’s essential that the heating pipes are in direct contact with the overlay board, and that the heat produced is driven upwards through the board to heat the space.

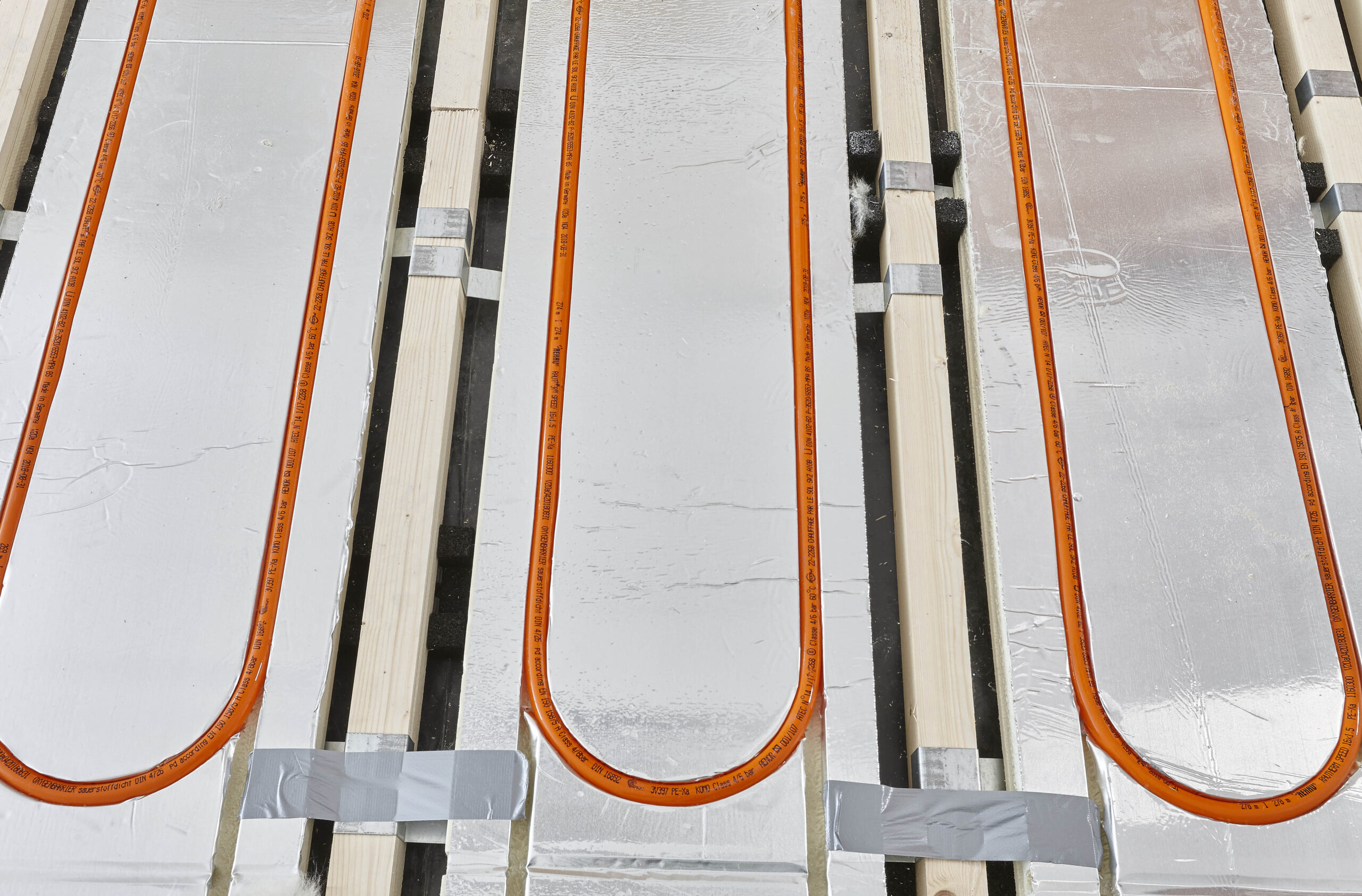

The EdB system works by holding the pipework in rigid, foil-faced, routed-out sheets of insulation which are held in place with galvanised steel brackets. When the overlay board is secured, the pipes stay in direct contact, creating maximum thermal efficiency.
Mounting the steel brackets on the battens means we can level the insulation with the overlay board and not the slab, eliminating air gaps. The rigid insulation then maintains a consistent connection with the overlay board and the pipe.
Typical components include:
The EdB system works by holding the pipework in rigid, foil-faced, routed-out sheets of insulation which are held in place with galvanised steel brackets. When the overlay board is secured, the pipes stay in direct contact, creating maximum thermal efficiency.
Mounting the steel brackets on the battens means we can level the insulation with the overlay board and not the slab, eliminating air gaps. The rigid insulation then maintains a consistent connection with the overlay board and the pipe.
Typical components include:
- Actuators
- Wiring centres
- Programmable thermostats
- Manifolds
- Pipework
- Routed out insulation and brackets holding the pipework
Aluminium Spreader Plates
In this system, thin aluminium plates are tacked to the top of the battens, with the pipes being secured in the grooves. This ensures connection between the pipes and the overlay board.
Mineral wool is placed beneath the aluminium plates and between the battens to increase thermal performance.
The aluminium plates are flexible, and it’s important that they don’t sag, as this creates an air gap which would reduce the thermal efficiency of the system. Our fitters are trained in the optimal installation of the system to deliver to specifications.
Typical components include:
Mineral wool is placed beneath the aluminium plates and between the battens to increase thermal performance.
The aluminium plates are flexible, and it’s important that they don’t sag, as this creates an air gap which would reduce the thermal efficiency of the system. Our fitters are trained in the optimal installation of the system to deliver to specifications.
Typical components include:
- Actuators
- Wiring centres
- Programmable thermostats
- Manifolds
- Pipework
- Single piece aluminium plates
Gas Safe Registered Engineers
InstaGroup’s engineers are Gas Safe registered and continually upskill to keep pace with the latest technology. We have a wide range of qualifications, allowing us to work on a diverse range of systems. For your peace of mind, you can always ask any engineer to show their Gas Safe ID card as proof of their qualifications.
We are currently working with Bracknell Forest Council to deliver on the Warm and Well scheme, installing energy-efficient heating and hot water systems to reduce bills. With many years of experience in the installation, servicing, and maintenance of heating and hot water systems, InstaGroup has successfully worked on:
We are currently working with Bracknell Forest Council to deliver on the Warm and Well scheme, installing energy-efficient heating and hot water systems to reduce bills. With many years of experience in the installation, servicing, and maintenance of heating and hot water systems, InstaGroup has successfully worked on:
- ECO4
- LAD (Local Authority Delivery)
- HUG (Home Upgrade Grant)
Meet Jacob – Our Plumbing Apprentice
Jacob is currently working towards his Level 3 Diploma in Plumbing and Domestic Heating, gaining hands-on experience while training with our highly skilled engineers. By working alongside our experienced team, he is not only learning the technical side of the trade but also benefiting from their wealth of knowledge and expertise, helping him build a strong foundation for his future career.
Case Studies.
View all Case Studies
Talk to our team to learn more about InstaGroup's underfloor heating services
