  1. Example InstaGen PDP

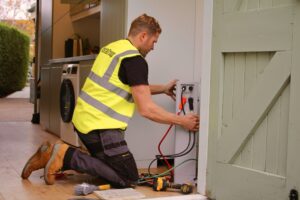

An InstaGen technician fitting a solar battery
Battery Storage

InstaGen LV Series Home Battery

A deep-cycle, high-capacity LFP battery with improved safety, long lifespan and an optimised user experience. IP66-rated for flexible indoor or outdoor installation, and scalable from 5.12 kWh to 102.4 kWh to meet any household’s demand.

  • 5.12-102.4
    kWh scalable
  • 8000
    cycle life
  • IP66
    indoor / outdoor
  • 10 year
    warranty
Certified installation, cloud monitoring and full UK-based aftercare included.
Enquire for a tailored quote and survey.
Enquire now
Download datasheet

or call 0330 236 5511

Key Features

Why choose battery storage from InstaGen

Engineered for UK homes.
  • 1
    IP66 all-weather design
    An engineer conducts a roof/electrical survey and provides an MCS report for a tailored solar design for your home.
  • 2
    Improved-safety LFP cells
    Lithium iron phosphate chemistry for long, stable service life.
  • 3
    Quick-connector design
    Tool-light stacking connectors save installation time on site.
  • 4
    Flexible capacity
    From 5.12 kWh up to 102.4 kWh across five parallel towers.
  • 5
    Self-heating technology
    Maintains performance and charging in cold UK conditions.
  • 6
    Module-level fire protection
    Protection engineered into every pack, not just the system.
From Our Customers

Battery storage image gallery

Images from our customers
Configure

Capacity options

Scale to your home's demand - single tower up to five towers in parallel.
Model
Modules
Total Energy
Max. Power
LV-05-G2.IG
1
5.12 kWh
2.56 kW
LV-10-G2.IG
2
10.24 kWh
5.12 kW
LV-15-G2.IG
3
15.36 kWh
7.68 kW
LV-20-G2.IG
4
20.48 kWh
10.24 kW
Technical Specifications

LV(05–20) G2.IG Series specifications

Tab the buttons to view more specifications.
  • Battery type
    LiFePO4
  • Rated capacity
    100 / 200 / 300 / 400 Ah
  • Number of modules
    1 / 2 / 3 / 4
  • Total energy
    5.12 / 10.24 / 15.36 / 20.48 kWh
  • Rated voltage
    51.2 V
  • Voltage range
    44.8–58.4 V
  • Rated charge / discharge
    0.5C
  • Max. continuous current
    50 / 100 / 150 / 200 A
  • Max. charge / discharge power
    2.56 / 5.12 / 7.68 / 10.24 kW
  • Peak charge / discharge power
    3.84 / 7.68 / 11.52 / 15.36 kW (10s)
  • Communication
    CAN, RS485
  • Recommended depth of discharge
    90%
  • Max. scalability
    5 towers
Download datasheet
Why InstaGroup

Delivering energy efficiency since 1980

Engineered for UK homes.
  • Certified installation
    MCS-accredited installers and a structured survey-to-handover process for every job.
  • Cloud monitoring
    Track generation, storage and performance over time from the InstaGen app.
  • Backed & warrantied
    Enhanced product and workmanship guarantee with full UK-based aftercare.

Interested in the LV Series Home Battery?

Tell us about your home and our team will prepare a tailored quote, survey and installation plan.
